TILED STOVE ADD-ONS

Circular classic tiled stoves

Our classic round tiled stoves have a height of between 2290 and 2360 mm. In the standard version, they are adapted for mounting in corners, which means that they are 4/5 clad with tiles around them. Hot-air cassette and brass hatches are included as standard.
With extra courses or raised feet, the height can be adjusted upwards or downwards at 100 mm intervals.

1 - Standard
2 - Elevated base (add-on)
3 - 1 extra course (add-on)
4 - 2 extra courses, elevated middle features, elevated base (add-on)

CLASSIC TILED STOVE

ADD-ONS

In addition to height adjustment, there are a number of add-ons and accessories that allow adaptation of both function and design. The add-ons are different for circular and rectangular stoves.

ADD-ONS FOR OUR CLASSIC TILED STOVES

Colour: In addition to white, we can also offer black and red as an add-on colour. We can also develop special glazing upon request.

Decorations: Gabriel's hand-painted decorations add an extra dimension to the tiled stove. Choose one of our existing decorations or create your own pattern, unique to you.

Tiles all around: Available as an add-on for our circular tiled stoves and this is the preferred choice if the stove is to be installed against a straight wall. In the case of corner installation, this is not necessary as the walls hide the back of the stove.

Stainless-steel parts: Replace all brass parts with stainless-steel ones.

Ledge: Add a ledge at the middle features

Floor plate: Choose a protective and decorative floor plate in brass or stainless steel.

Fan: A fan spreads hot air quickly and efficiently in the room before the stove reaches its temperature.

Fan control: Controls the fan speed.

Air supply connection from the outside: Necessary when the air supply to the stove is taken from the outside.

Air supply connection from the outside: Necessary when the air supply to the stove is taken from the outside.

Rectangular classic tiled stoves

Depending on the model, our rectangular classic tiled stoves have a height of 2350-2410mm. Hot-air cassette and brass hatches are included as standard.
With extra courses or raised feet, the height can be adjusted upwards or downwards at 110 mm intervals.

1 - Standard
2 - Elevated base (add-on)
3 - 1 extra course (add-on)
4 - 2 extra courses, elevated middle features, elevated base (add-on)

SVEA

Svea is 2000 mm high and customised for mounting in corners, which means that it is 4/5 clad with tiles around it. Unlike Gabriel's other furnaces, Svea has a smaller and more traditional combustion chamber equipped with a glass door and brass outer hatches. Add your personal touch to Svea by choosing any of the crowns we have available.

With extra courses or raised feet, the height can be adjusted upwards or downwards at 100 mm intervals.

1 - SVEA Standard: approx. 2,000 mm
2 - SVEA with 1 extra course: approx. 2,300 mm (add-on)

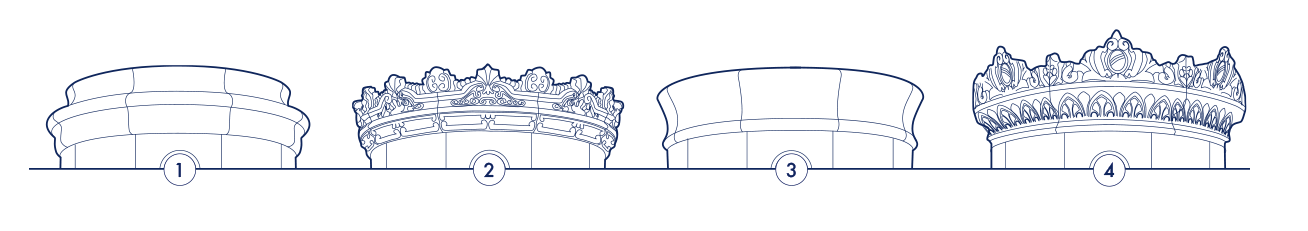

Crowns: 1. Tillinge | 2. Karl-Johan | 3. Duvemåla | 4. Louise

STUDIO

In its standard version, STUDIO is 2350-2390 mm high (can be customised slightly). The stove is customised for corner installation, which means that it is clad with tiles 4/5 around it. Hot-air cassette with brushed stainless steel frame and brushed stainless steel trims and standard colour trims are included as standard.
STUDIO in red comes with brass frame and trim as standard.

With extra courses or raised feet, the height can be adjusted upwards or downwards at 100 mm intervals.

1 - STUDIO Standard 2,350 - 2,390 mm
2 - STUDIO With 1 extra course 2,660 - 2,700 mm (add-on)
3 - STUDIO With 2 extra courses, 2,970 - 3,010 mm (add-on)

STUDIO2

In its standard version, STUDIO2 is 2,380 - 2,420mm high (can be customised slightly). The stove is customised for corner installation, which means that it is clad with tiles 4/5 around it. Hot-air cassette with brushed stainless steel frame and brushed stainless steel trims and standard colour trims are included as standard.
STUDIO2 comes with a black granite or light grey limestone ledge as standard.

With extra courses or raised feet, the height can be adjusted upwards or downwards at 100 mm intervals.

1 - STUDIO 2 Standard, 2,380 - 2,420 mm
2 - STUDIO 2 with 1 extra course 2,660 - 2,700 mm (add-on)

CUSTOMISE STUDIO TO YOUR PROJECT

STUDIO add-ons

In addition to height adjustment, there are a number of add-ons and accessories that allow for both aesthetic and functional customisation of our tiled stoves.

POSSIBLE ADD-ONS

Colour: In addition to white, we can also offer black, grey, red and blue as an add-on colour. We can also develop special glazing upon request.

Decorations: Gabriel's hand-painted decorations add an extra dimension to the tiled stove. Choose one of our existing decorations or create your own pattern, unique to you.

Stainless steel parts: Replace all brass parts with stainless steel ones.

Tile surround: We tile the whole stove all around

Floor plate: Choose between brass or stainless steel

Ledge material: Supreme matte finishing - add-on

Fan: A fan spreads hot air quickly and efficiently in the room before the stove reaches its temperature.

Fan control: Controls the fan speed.

Air supply connection from the outside: Necessary when the air supply to the stove is taken from the outside.

AVANTI

The standard Avanti is 2,430mm high (can be adjusted slightly). Hot-air cassette with brushed stainless steel frame and brushed stainless steel trims and standard colour trims are included as standard.

Avanti comes with a black granite or light grey limestone ledge as standard.
With extra courses or raised feet, the height can be adjusted upwards or downwards at 100 mm intervals.

1 - Standard 2,430 mm
2 - With 1 extra course 2,540 mm (add-on)
3 - With 2 extra courses, 2,650 mm (add-on)

ADD YOUR PERSONAL TOUCH TO AVANTI

Avanti add-ons

In addition to height adjustment, there are a number of add-ons and accessories that allow adaptation of both function and design.

POSSIBLE ADD-ONS

Colour: In addition to the standard colours gloss white and matte black, we can also develop special glazing upon request.

Decorations: Gabriel's hand-painted decorations add an extra dimension to the tiled stove. Choose one of our existing decorations or create your own pattern, unique to you.

Brass details: Replace all stainless steel parts with brass

Floor plate: Choose between brass or stainless steel

Ledge material: Supreme matte finishing is available as an add-on

Fan: A fan spreads hot air quickly and efficiently in the room before the stove reaches its temperature.

Fan control: Controls the fan speed.

Air supply connection from the outside: Necessary when the air supply to the stove is taken from the outside.
